Description

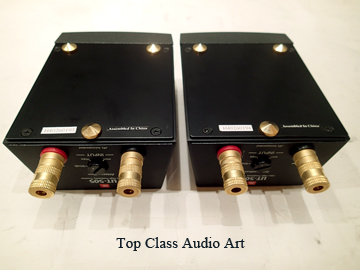

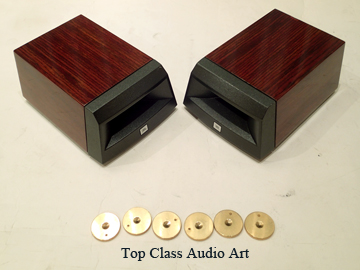

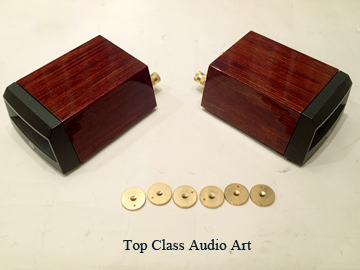

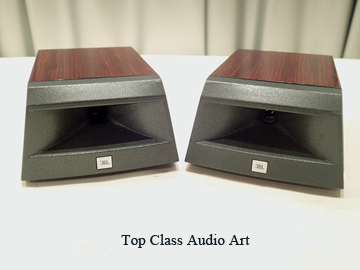

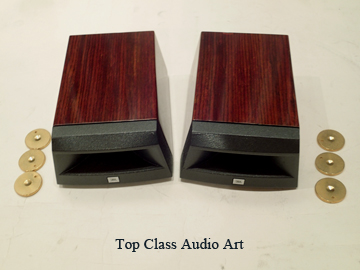

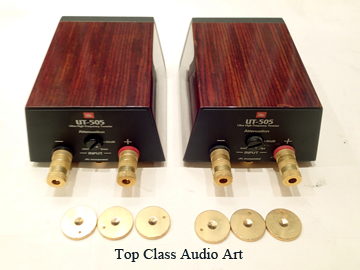

JBL UT-505 horn type super twweter pair.
19mm (3/4 inch) diameter compression driver mounted which adopted the JBL tradition of pure titanium diaphragm.
It employs a neodymium ring magnet, which boasts the strongest magnetic force in the magnetic circuit.
The horn, with a horizontal 60 degree ¡Ñ30 degree vertical directivity, front baffle adopt an integrated zinc alloy die-cast, high-rigidity by radial horn.
Type: Horn type super tweeter (crossover network internal organs)
Maximum input: 20W (RMS)
Frequency characteristics: 10kHz ~ 40kHz
Input impedance: 6£[
Input sensitivity: 95dB (max) (2.83V/1m)
Cut off frequencies: 16kHz (-18db/oct).
Dimensions: W107¡Ñ H67¡Ñ D166 (including terminals)
Net weight: 850g
