Shipping, tax, and handling costs is not included in the price.
|
|

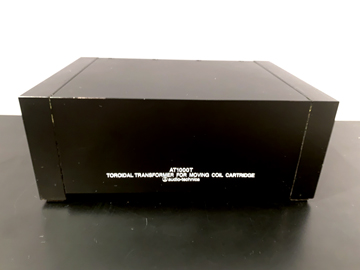

Audio Technica AT1000T MC cartridge step up transformer.
Audio-Technica AT1000T, released in Japan in the 1981 during the ˇ§Golden Eraˇ¨ of Japanese high-fidelity audio equipment, is a step-up toroidal transformer for use with moving coil (MC) phono cartridges. Audio-Technica is known for producing superb phono cartridges and other audio equipment, and this AT1000T upholds the companyˇ¦s legacy. This transformer is somewhat legendary and rare and remains highly sought after as one of the best MC transformers ever made. It incorporates 4 toroidal transformers (2 per channel), accepts inputs of 3, 20, and 40 ohms, and has the same values for outputs.
Type: Moving coil cartridge step up transformer

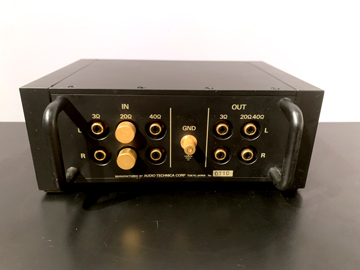

Input impedance: 3, 20 and 40 ohm (20 or 40 ohm use RCA shorter interchange)
Output: 3 ohm and 20/40 ohm separate
Output impendance: 47k ohm
Gain: 34dB (3 ohm), 26dB (20 ohm), 23dB (40 ohm)
Frequency response: 5~80,000Hz
Dimensions: W204x H81x D153mm
Net weight: 8kg |
|
|
| Goods sold are not returntable. Subject to terms and conditions exchange of goods can be considered. |
|
