Description

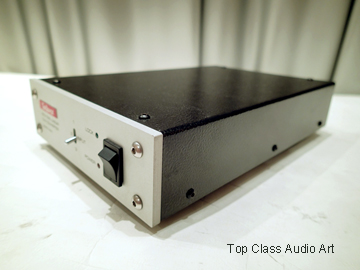

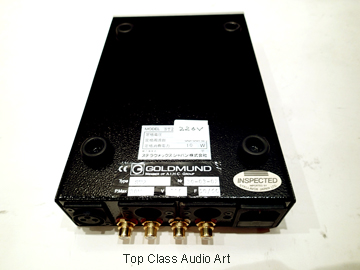

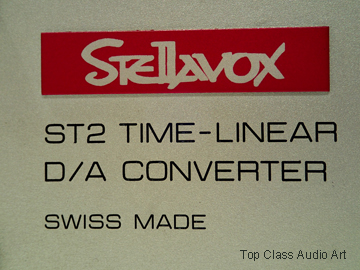

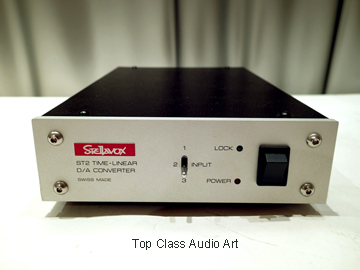

Stellavox ST2 Time Linear D/A converter.
Type: Digital to analog converter
Inputs
Standard Version: 1x XLR AES-EBU and 2x RCA SPDIF
Front panel selection.
Signal up to 24 bits 96kHz
Outputs
Standard Version: 2x XLR balanced and 2x RCA unbalanced usable simultaneously
Frequency response: At 44.1 kHz : +/- 0.25 dB, 20 Hz - 20 kHz
Output level: 2V on 2.2k ohms in unbalanced.
Up to 15 dBU in balanced.
Group delay
Propagation delay stable with frequency within 100 picosecond from 20 Hz to 20 kHz
Distortion
Harmonic on 24 bits signal at 44.1 kHz : THD < 0.002%
Dynamic range: At 44.1 kHz with 24 bits signal EIAJ A Weighted : > 104 dB
Sampling frequency: 30-96 kHz
Channel gain mismatch: < 0.2 dB
Dimensions: W15x H5x D20cm
Net weight : 1.5kg
AC voltage: AC-120V and AC-240V 50/60Hz interchange
Goods sold are not returntable. Subject to terms and conditions exchange of goods can be considered.
