Shipping, tax, and handling costs is not included in the price.
|
|

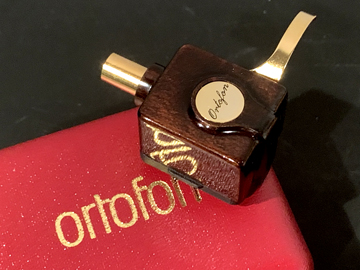

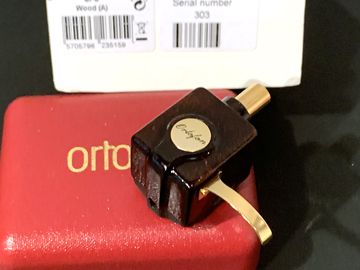

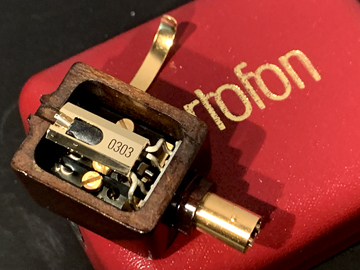

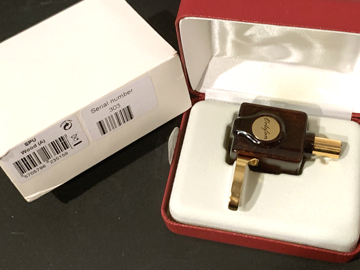

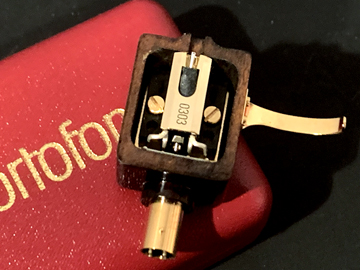

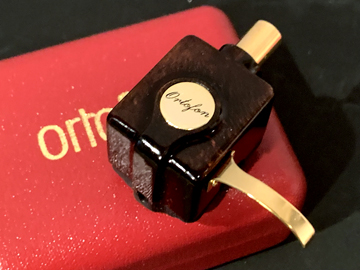

Rare and hard to find NEW OLD STOCK Ortofon SPU Wood A MC cartridge in Ortofon original red jewel box (Early packing version).
SPU Wood A
A perfect combination of Japanese and Danish craftsmanship and technique, the SPU Wood A is beautiful in finish and form, as well as in its sonic expression.
The SPU Wood A unique characteristics includes an outstanding housing made of Japanese Beech wood, famous for its strength and hardness. For the exclusive surface treatment, the 6000-year-old Japanese Urushi lacquer method was chosen in order to achieve a hard, resistant and beautiful multilayer surface in a dark maroon color.
The wooden housing has a strong influence resulting in a very pleasant, open, dynamic, straightforward, and present tone range characteristic for the SPU sound.
dge
Services
Support
Where to buy
About us
Historical product
SPU Wood A
A perfect combination of Japanese and Danish craftsmanship and technique, the SPU Wood A is beautiful in finish and form, as well as in its sonic expression.
The SPU Wood A unique characteristics includes an outstanding housing made of Japanese Beech wood, famous for its strength and hardness. For the exclusive surface treatment, the 6000-year-old Japanese Urushi lacquer method was chosen in order to achieve a hard, resistant and beautiful multilayer surface in a dark maroon color.
The wooden housing has a strong influence resulting in a very pleasant, open, dynamic, straightforward, and present tone range characteristic for the SPU sound.
SPU Wood A technical data
Output voltage: 0.18mV at 1000 Hz, 5cm/sec.
Channel balance: <1.5dB at 1 kHz
Channel separation: 20dB at 1 kHz
Channel separation: 10dB at 15 kHz
Frequency response: 20-25.000 Hz +/-2 dB
Tracking ability: 70um at 315Hz at recommended stylus pressure
Compliance: 10 um/mNdynamic, lateral
Stylus: Spherical
Stylus radius: R 18 µm
Stylus pressure range: 3.0~5.0 gram (30~50 mN)
Recommended: 4.0 gram (40 mN)
Tracking angle: 20 degree
Internal impedance: 2.5 ohm
Recommended load impedance > 10 ohm
Cartridge body material: Japanese Beech wood with Urushi lacquer method
Cartridge color: Dark maroon
Net weight: 29 gram |
|
|
| Goods sold are not returntable. Subject to terms and conditions exchange of goods can be considered. |
|
