Description

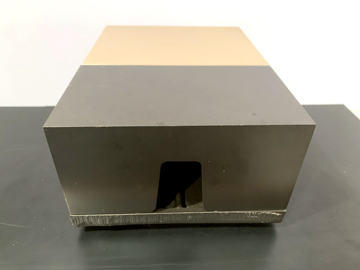

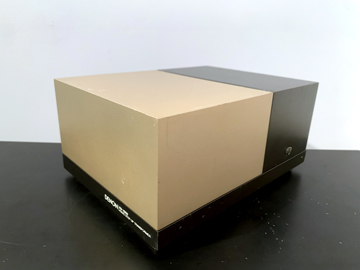

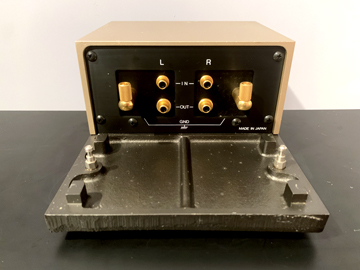

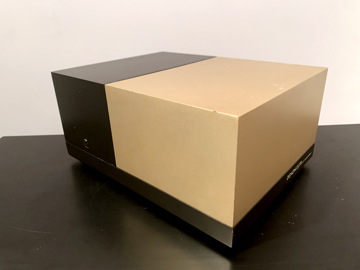

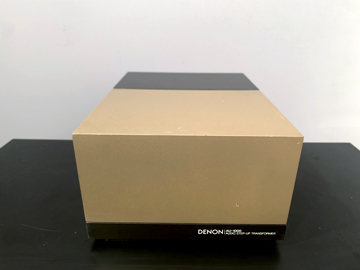

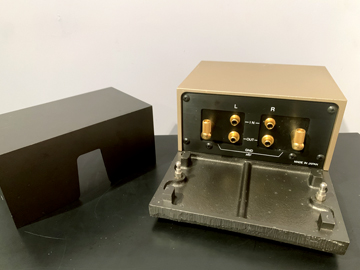

Denon FLATSHIP model AU-1000 MC cartridge step up transformer.

Step-up transformer paired with the DL-1000 and 1000A FLATSHIP model moving coil cartridge.
The core is made of a specially shaped, large, laminated permalloy sheet.
Permeability is approximately 1.5 times that of conventional transformers in the low-frequency range.
The transformer itself is double-shielded and secured with filler material.
Oxygen-free copper wire output cord for low resistance and low capacitance.

Type: Moving coil cartridge step up transformer
Input impedance: 30 ohm (Compatible Cartridge Impedance: 10~40 ohm)
Output impendance: 4kohm
Gain: 1:11.5
Load Resistance: 50k ohm
Frequency Range: 5~200,000Hz
Dimensions: W18.0x H11.3x D24.5cm
Net weight: 12kg
