Shipping, tax, and handling costs is not included in the price.
|
|
Very very very rare and very very very hard to find work in excellent working condition Technics SP-10 MKIII turntable system.

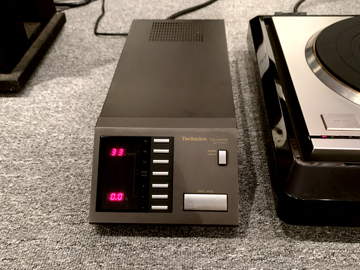

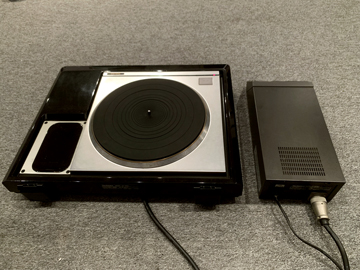

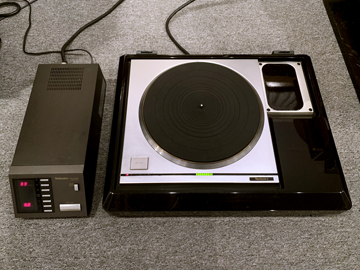

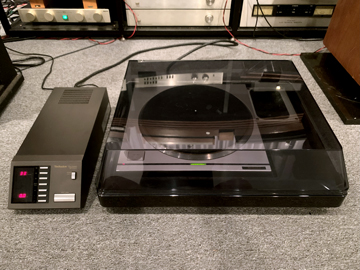

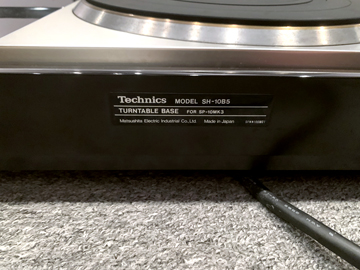

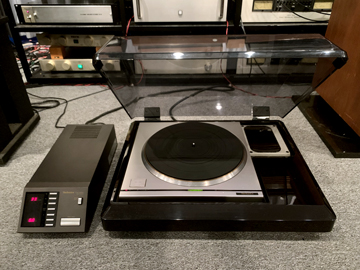

Comes with SH10-B5 turntable plinth and separate power supply control unit.
Type:Quartz Synthesizer D. D. Turntable
Drive system: Direct drive
Turntable platter: Copper alloy + aluminum die-cast
Platter: 32cm diameter
Turntable weight: 10kg
Inertial mass: 1.1 ton ・ cm square (1,100 kg / cm square)
Motor: Quartz phase locked control, ultra-low speed electronic commutator brushless DC motor
Number of revolutions
Speed: 33 1/3, 45, 78.26 rpm
Rotational speed fine adjustment range: Quartz lock pitch variable up to 0.1% step and +/- 9.9%
(each speed independently)
Starting torque: 16 kg / cm
Startup time: 0.25 seconds (33 1/3 rpm)
Outage time: 0.3 seconds (33 1/3 rpm)
Load variation: 10 kg / cm or less 0%
Rotational speed deviation: Within +/- 0.001%
Wow flutter: 0.015%WRMS(JIS C5521), +/-0.021% weighed zero to peak (DIN45507, IEC98A, weighted)
Signal-to-noise ratio: 92dB DIN-B(IEC98A weighted), 60dB DIN-A(IEC98A unweighted)
AC-voltage: AC-220V, 50/60Hz or interchange to AC-100V, AC-120V and AC-240V 50/60Hz
Power consumption: 25W
Turntable plinth dimensions: W369x H113x D369 mm
Power supply control unit dimension: W166x H96x D410 mm
Net weight: TT--18 kg, power supply control unit--6 kg
More detail sample photos please visit: https://topclassaudio.com/web/eng/used_product_details.jsp?gid=8992 |
|
|
| Goods sold are not returntable. Subject to terms and conditions exchange of goods can be considered. |
|
