Shipping, tax, and handling costs is not included in the price.
|
|

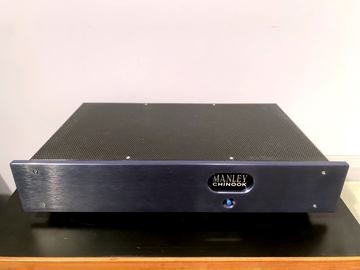

Manley Chinook tube MM/MC phono amplifier.
Specifications:

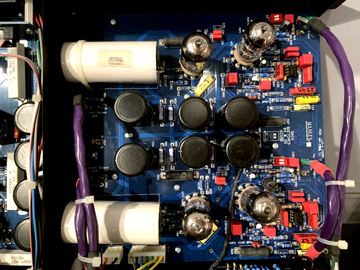

Vacuum Tube Complement: 6922 x 2 (gain stage) plus 6922 x2 (output stage). Any 6DJ8, 7308, ECC88 types may be used.
Unbalanced Input and Output connections via Manley Teflon ® & Gold plated RCA jacks
Automatic Mute Timer: On initial power up output jacks are muted for approximately 45 seconds. Automatic mute circuit allows tubes to warm up and circuitry to settle. At power down, output jacks are immediately muted.

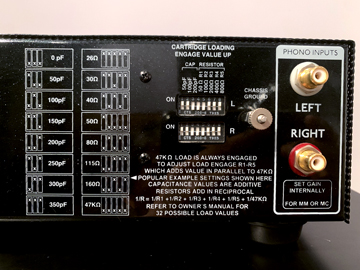

Input Termination Capacitance (MM/MC): 3-position user-selectable capacitor values of 50pF, 100pF, and 200pF yield resultant combinations of: 50, 100, 150, 200, 250, 300, and 350pF
Moving Magnet Input Impedance: 47k Ohms, fixed
Moving Coil (MC) Input Impedance: 5-position user-selectable resistor values of 50, 100, 200, 400, and 800 Ohms. There are 32 possible loading possibilities.
Gain: Internal DIP switches select 45dB or 60dB
Deviation from RIAA curve: Less than +/- 0.5 dB from 20~20kHz at any gain setting. Typically less than +/- 1dB from 10~100kHz.
Distortion (THD+N) (47k Ohm Input Termination, 45dB gain, 1kHz sine, 0dBu output): Typical 0.010% THD+N, into 100k Ohm load, BW = 100~22kHz
•Distortion (THD+N) (47k Ohm Input Termination, 45dB gain, 1kHz sine, 0dBu output): Typical 0.030% THD+N, into 600 Ohm load, BW = 100~22kHz
Dynamic Range (MM input, Gain set to 45db, 200 Ohm source): 91dB @ 1kHz, 0.1% THD+N, BW = 22~22kHz
Dynamic Range (MM input, Gain set to 45db, 200 Ohm source): 107dB @ 1kHz, 1.0% THD+N, BW = 22~22kHz
Noise Floor at 45dB gain setting with shorted input: -84 dBu, A-weighted
Noise Floor at 60dB gain setting with shorted input: -75 dBu, A-weighted
Maximum Input at 45dB gain setting with 20 Ohm Source Z @ 1kHz into 10 k ohm load: 250mV RMS = +34.5 dBu @ 1% THD+N BW=22~22kHz
Maximum Input at 60dB gain setting with 20 ohm Source Z @ 1kHz into 10 kOhm load: 40mV RMS = +34.2 dBu @ 1% THD+N BW=22~22kHz
Maximum Output: +37dBu @ 1kHz, 1.5% THD+N into 100k ohm load
Output Impedance: 91 ohms
Minimum Recommended Load: 2500 ohms

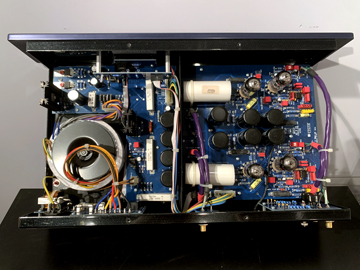

Internal Power Supply: Fully regulated linear B+, Heater, and control voltage rails.
Operating Mains Voltage: Units are built for original destination country¡¦s mains voltage: 100V, 120V, or 220-240VAC as indicated on the serial number badge.
Power Consumption in Standby mode: 1 Watt (8.0mA @ AC-120V)
Power Consumption: 42 Watts (345mA @ AC-120V)
Mains Voltage Frequency: 50~60Hz
Power Transformer: Toroid contruction for low radiation.
Mains Fuse for 220~240V operation: 250mA SLO-BLO size 5mmx 20mm
Standby Transformer Fuse for all voltage operation 100V-240V: 10mA, SLO-BLO, MDL type size 1/4x 1 1/4 inch

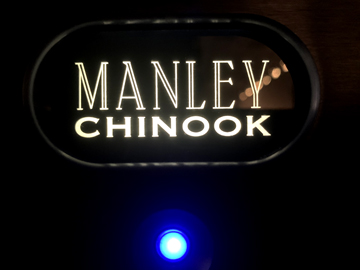

Badge Lamp: LED illumination
Dimensions: W19x H=3.5 xD11 inches
Shipping Weight: 15 lbs |
|
|
