Shipping, tax, and handling costs is not included in the price.
|

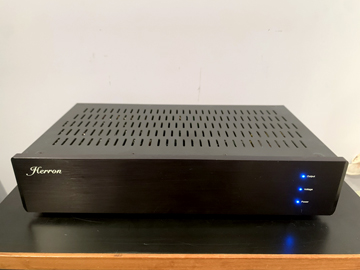

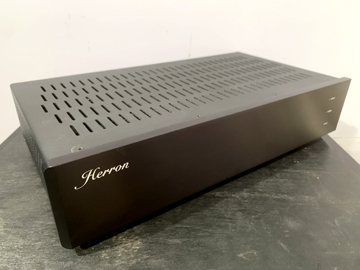

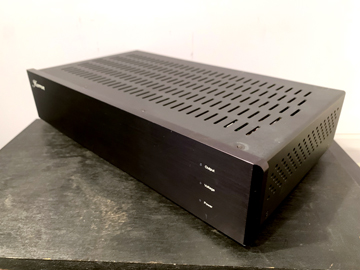

Herron Audio VTPH-2 Vacuum Tube MM/MC phono amplifier.
Comes with MC load resistor RCA plugs.
Type: MM and MC tube phono amplifier

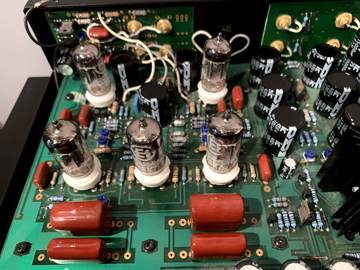

Tube complement: Available in two 5 tube factory set configurations
Gain: MC -- 64dB (2x 12AX7, 3x 12AT7), 69dB (4x 12AX7, 1x 12AT7) MM -- 43dB (2x 12AX7, 3x 12AT7), 48dB (4x 12AX7, 1x 12AT7)
Frequency response:20~20kHz
Signal-to-noise ratio: 80dB
Output impedance: 500 ohm
Input impedance: MC -- infinite woth no loadresistor connect, load resistors can be connected externally, MM -- 47,000 (47k) ohm 100 pF
Absolute polarity: Non inverting
Dimension: W17.6x H4x D10 inches
Net weight: 16 lb
AC voltage: AC-220V 50/60Hz |
|
|
Goods sold are not returntable. Subject to terms and conditions exchange of goods can be considered. |
|
