Shipping, tax, and handling costs is not included in the price.
|
|
Rare all original and only available in Japanese audio market SME SPA1HL tube phono amplifier.
Comes with 2x Telefunken ECC83 and 2x Telefunken ECC88 and original packing box.
Known by the SME distubutor HK that thsi SME SPA1HL was designed by Ortofon/SME and manufactured by Harman Kardon Japan at 1986.
MC section use with four Ortofon T-2000 grade silverd/balanced type step up transformer for step up low impendance and mid/high impendance MC cartridges.

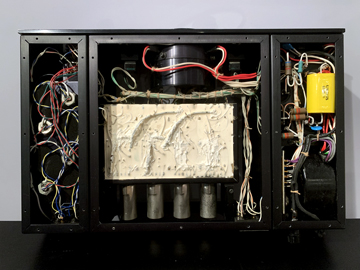

PS: Please notice the sample photo, photo shown the circuit board bottom side still have the original damping gum in never open's excellent condition, that mean this SPA1HL ever get burnt or maintanance, ALL ORIGINAL!
Type: MC/MM tube phono amplifier
Tube: ECC83x 2 and ECC 88x 2
Input: MC Low, MC Mid and Through (MM/RIAA)
Gain (1kHz): MC Low --75.8, MC Mid -- 64dB , Through -- 40.8dB
Distortion (1kHz, 1V): Less than 0.0067%
Maximum Output Voltage: 30V (1kHz, 47k ohm load)
Power Supply: AC 100V, 50Hz/60Hz
Power Consumption: 50W
Dimensions: W410x H110x D285mm
Net weight: 7.0kg |
|
|
